View Point
A lightweight mobile computer that delivers accurate input functionality.
This industrial mobile computer features a physical keypad that enables fast and accurate input even while wearing gloves.Its lightweight design and keypad allow one-handed operation for repetitive quantity entries and location code input.
Additionally, with Wi-Fi 5 and 4G connectivity, it provides uninterrupted wireless communication.
The 5,200mAh high-capacity battery combined with optimized software design ensures smooth, long-lasting operation, enhancing efficiency and reliability in fieldwork.
Highlights
-
Physical Keypad
Equipped with a 30-key keypad, the device allows fast and accurate numeric input and function execution, providing reliable operation even while wearing gloves. It maximizes productivity and work efficiency in environments with repetitive tasks. -

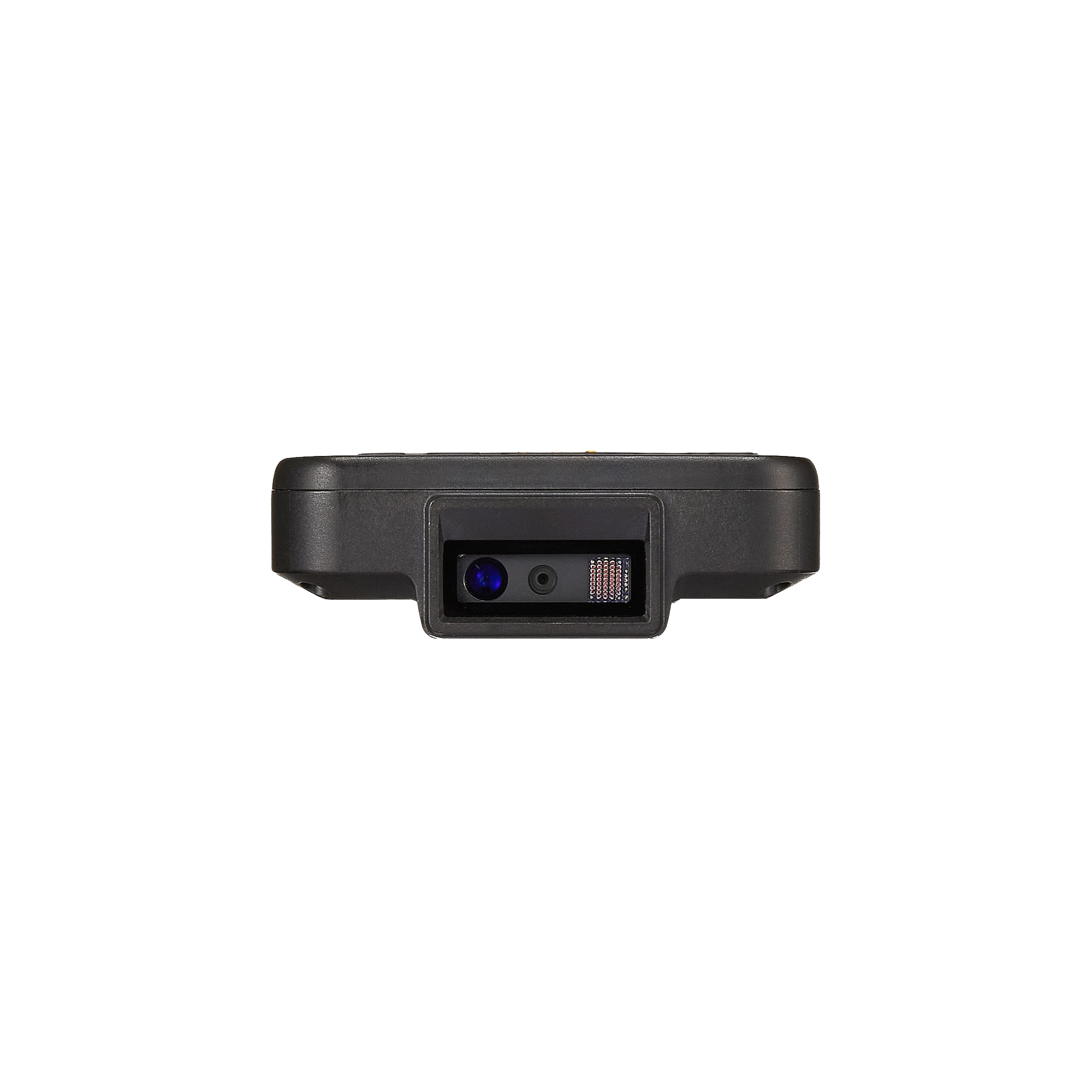

Selectable Scan Module
Depending on user needs and environment, you can choose between the E4 and SE4710 modules, both of which provide fast and accurate 1D and 2D barcode recognition. -
Reliable Connectivity
With support for Wi-Fi 5, 4G, Bluetooth 5.0, and dual nano SIMs, the device provides wide-range, fast, and stable connectivity without interruption. -
Up to 16 Hours of Non-Stop Operation
Equipped with a 5,200mAh battery, the device can operate for up to 16 hours without replacement. With hot-swap capability, ongoing tasks can continue uninterrupted without the need to reset the device. -
Clear Image and Video Capture
Featuring a 5MP front camera and a 13MP rear camera, the device enables clear image and video capture in any environment.
Specification
| Size | ⓦ 66 x ⓗ 162.3 x ⓓ 17.2 mm |
|---|---|
| Weight | 266g |
| Display | 4 Inch |
| Memory | 4/64 GB |
| CPU | 2.0 GHz Octa-core |
| Operating System | Android 13 to 15 |
| Data Capture | 2D Imager - E4, SE4710(Option) |
| WWAN | Support VoLTE LTE FDD: 700/800/850/900/1700/1800/1900/2100/2600 (1/2/3/4/5/7/8/19/20/28); LTE TDD: 1600/2300/2500 (38/40/41); UMTS/HSDPA/HSPA+: 850/900/1800/1900/2100(1/2/3/4/5/8); GSM/GPRS/EDGE: 850/900/1800/1900 (2/3/5/8); |
| WLAN | IEEE 802.11 802.11 a/b/g/n/ac/d/e/h/i/j/k/r/v, IPv4, IPv6, 1X1 MU-MIMO |
| Battery | 5200mAh Hot-Swap Support |
| Tumble Test | 1M/1,000times (With Boots), 0.5M/2,000times (Without Boots) |
| Drop Test | 1.8M (With Boots), 1.5M (Without Boots) drops to concrete across the operating temperature range per MIL-STD-810G |
| Sealing | IP65 |
